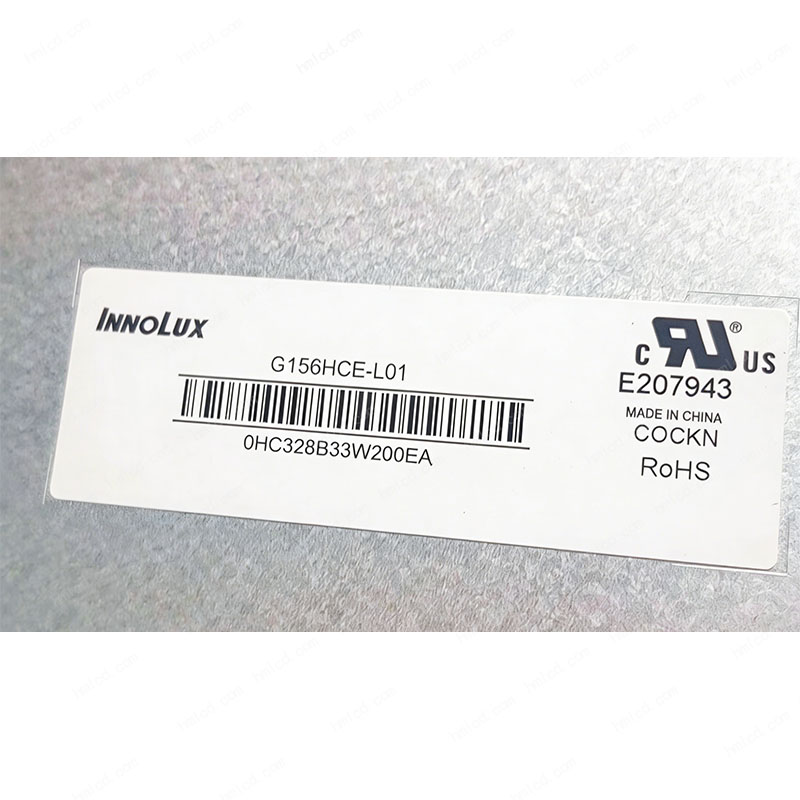

15.6"_Innolux_G156HCE-L01
Resolution
1920 X 1080
Brightness
450 cd/m2 (Typ.)
Viewing Angle
85/85/85/85 (Typ.)(CR>=10)
Contrast Ratio
800:1 (Typ.) (tm)
Display Colors
16.2m 73% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
344.16 X 193.59(mm)
Display Mode
aas， Normally Black ， Transmissive
Lamp Type
WLED 50k Hours With LED Driver
Outline Size
363.8 X 215.98 X 9.6(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
1.05/1.09kgs (Typ./max.)
Response Time
13/12 (Typ.)(tr/td) ms
Frequency
60Hz
Signal Interface
LVDS (2 ch 8-bit) 40 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 85°c; Storage Temp.: -40 ~ 90°c;
Current State
In Production
