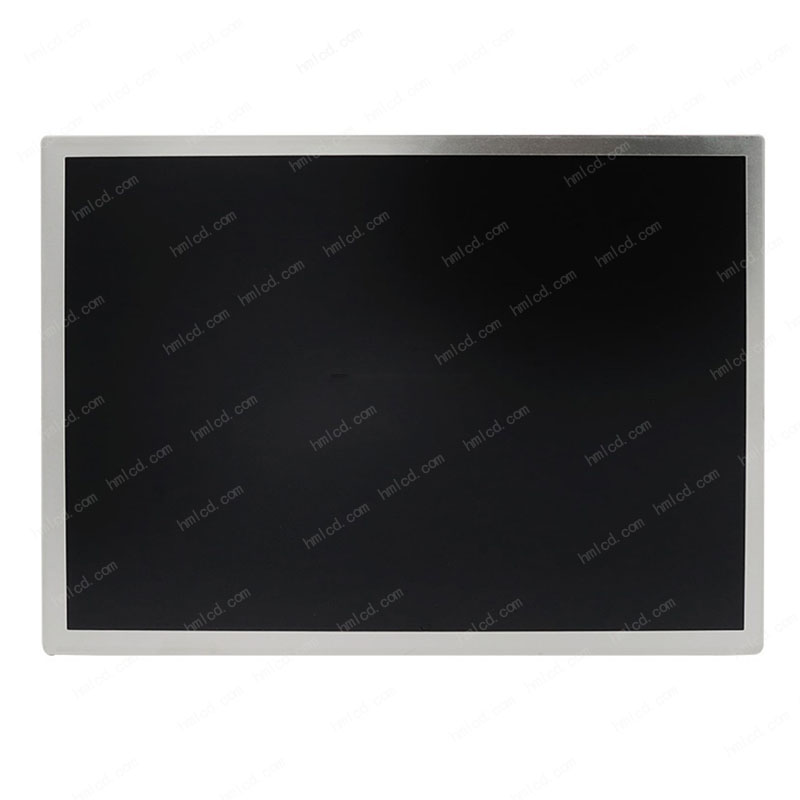

12.1"_BOE_AV121X0M-N10
Resolution
1024 X 768
Brightness
600 (min.)
Viewing Angle
85/85/85/85 (Typ.)(CR>=10)
Contrast Ratio
1000 : 1 (Typ.) ( Transmission )
Display Colors
16.2m 70% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
245.76 X 184.32(mm)
Display Mode
ads， Normally Black ， Transmissive
Lamp Type
WLED 8s6p 30k Hours Without Driver
Outline Size
265.5 X 206.3 X 13.5(mm)
Surface
-
Panel Weight
tbd
Response Time
30 (Typ.)(Tr+Td) ms
Frequency
60Hz
Signal Interface
LVDS (1 ch 8-bit) 30 pins
Input Voltage
3.3/11.5/17.0/-9.0v (Typ.)(vcc/avdd/vgh/vgl)
Environment
Operating Temp.: -20 ~ 85°c; Storage Temp.: -30 ~ 85°c;
Current State
In Production
