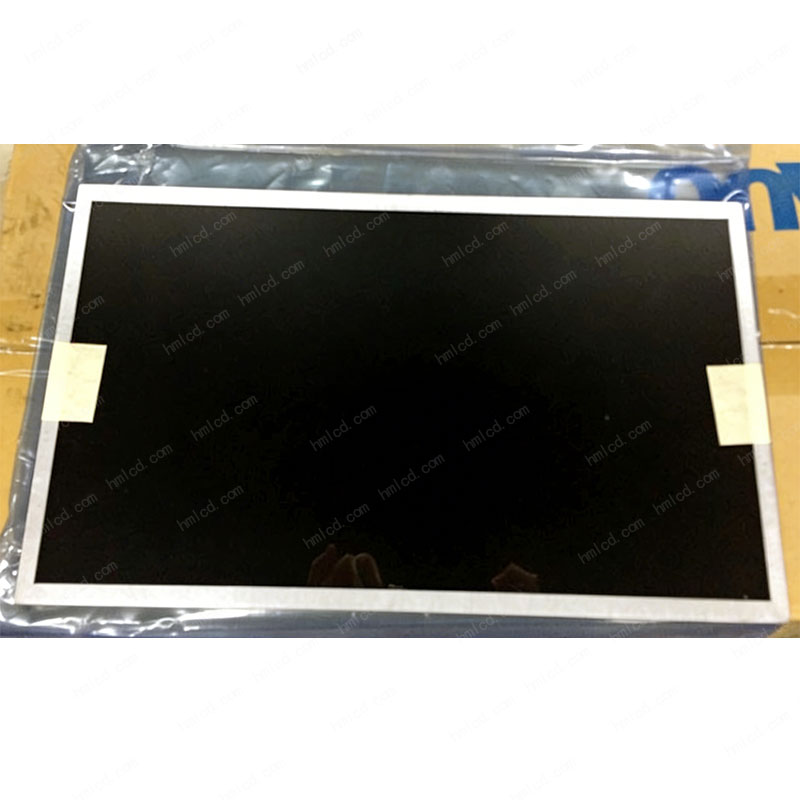

G156XW01 V3
Resolution
1366 X 768
Brightness
400 cd/m2 (Typ.)
Viewing Angle
85/85/80/80 (Typ.)(CR>=10)
Contrast Ratio
500:1 (Typ.) ( Transmission )
Display Colors
16.2m 67% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
344.232 X 193.536(mm)
Display Mode
TN， Normally White ， Transmissive
Lamp Type
WLED 50k Hours With LED Driver
Outline Size
363.8 X 215.9 X 9.8(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
0.94/1.04kgs (Typ./Max.)
Response Time
6/2 (Typ.)(Tr/Td) ms
Frequency
60Hz
Signal Interface
LVDS 30 pins (1 ch 8-bit)
Input Voltage
5.0v (Typ.)
Environment
Operating Temp.: 0 ~ 60°c; Storage Temp.: -20 ~ 60°c;
Current State
In Production
Discover the G156XW01 V3 LCD panel specifications and parameters. This guide covers the essential features, including resolution, brightness, contrast ratio, and connectivity options. Ideal for engineers and manufacturers looking for comprehensive insights into this display model.
