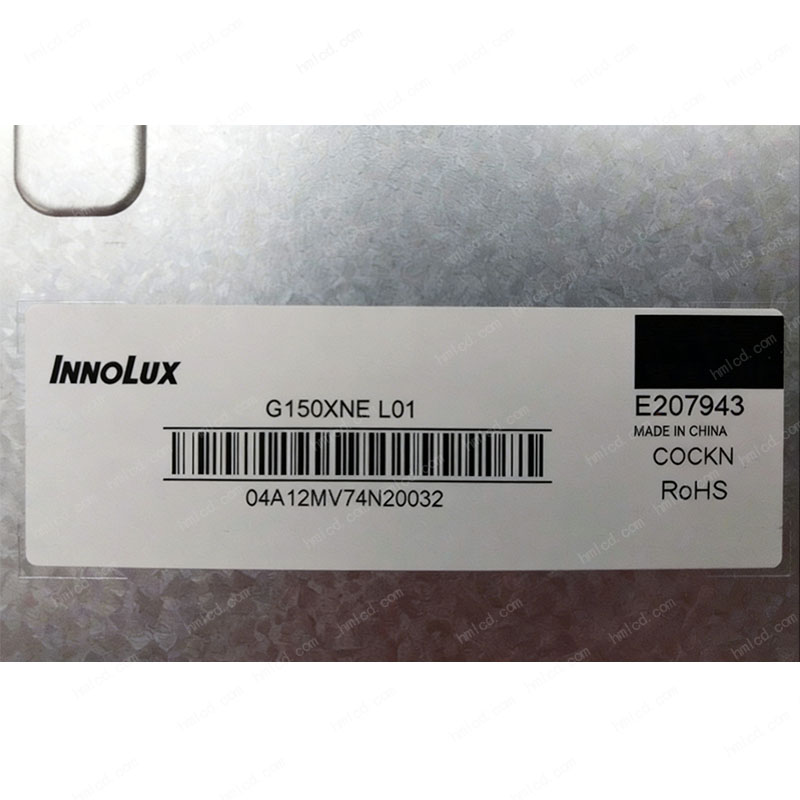

15.0"_Innolux_G150XNE-L01
Resolution
1024 X 768
Brightness
450 cd/m2 (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR>=10)
Contrast Ratio
2500:1 (Typ.) (TM)
Display Colors
262k/16.2m 72% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
304.128 X 228.096(mm)
Display Mode
npva， Normally Black ， Transmissive
Lamp Type
WLED 70k Hours With LED Driver
Outline Size
326.5 X 253.5 X 9.6(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
0.97/1.00kgs (Typ./Max.)
Response Time
13/5 (Typ.)(Tr/Td) ms
Frequency
60Hz
Signal Interface
LVDS (1 ch 6/8-bit) 20 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 80°c; Storage Temp.: -40 ~ 85°c;
Current State
In Production
