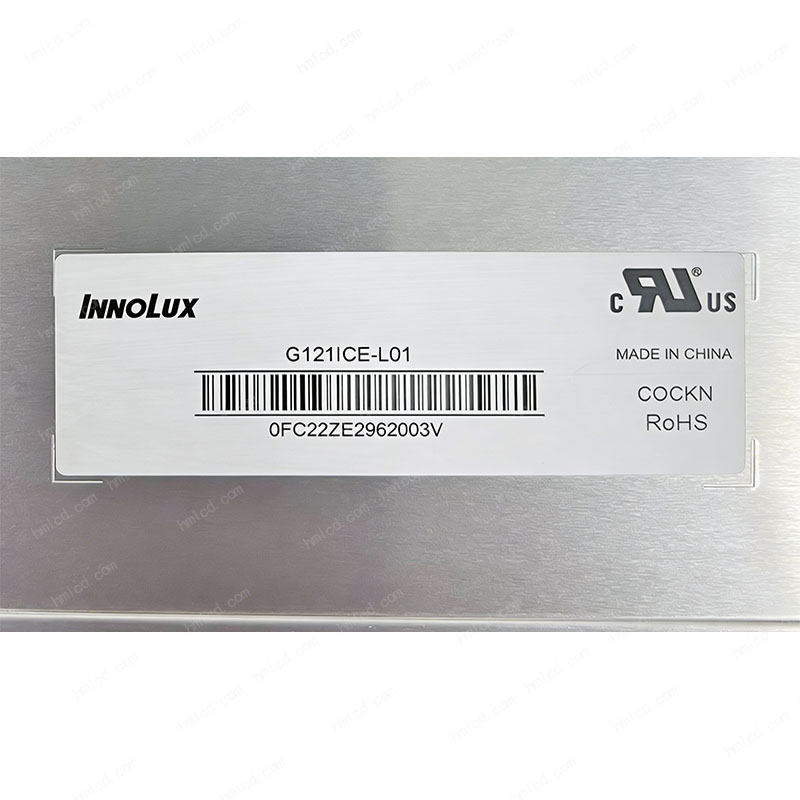

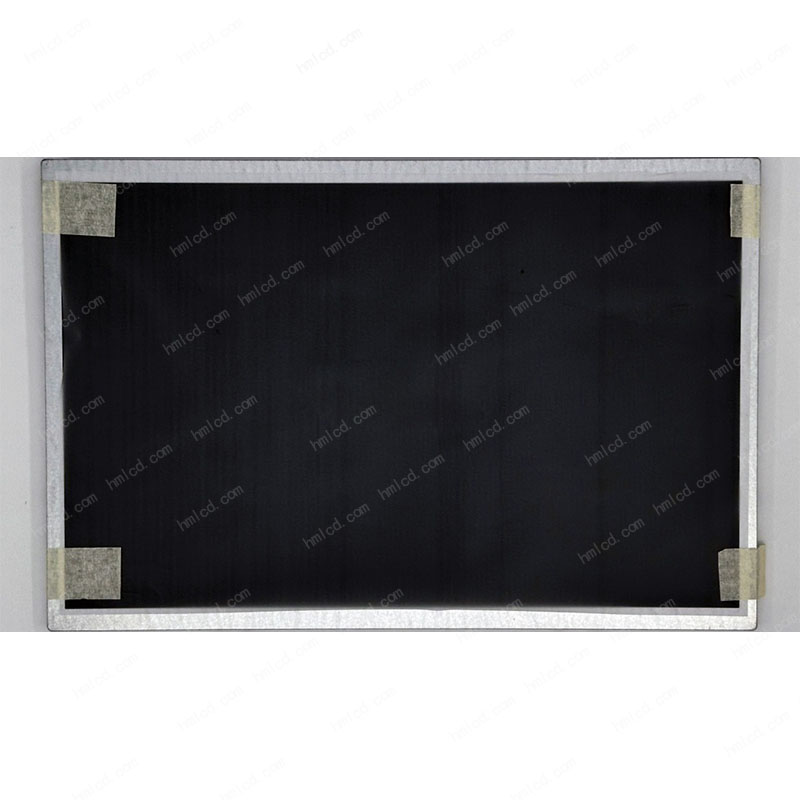

12.1"_Innolux_G121ICE-L01
Resolution
1280 X 800
Brightness
600 cd/m2 (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR>=10)
Contrast Ratio
1000:1 (Typ.) (tm)
Display Colors
262k/16.7m 72% ntsc
Pixel Format
RGB Vertical Stripe
Display Area
261.12 X 163.2(mm)
Display Mode
aas， Normally Black ， Transmissive
Lamp Type
WLED 50k Hours With LED Driver
Outline Size
278 X 184 X 10(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
470g (Typ.)
Response Time
15/12 (Typ.)(tr/td) ms
Frequency
60Hz
Signal Interface
LVDS (1 ch 6/8-bit) 30 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -20 ~ 80°c; Storage Temp.: -30 ~ 85°c;
Current State
In Production
