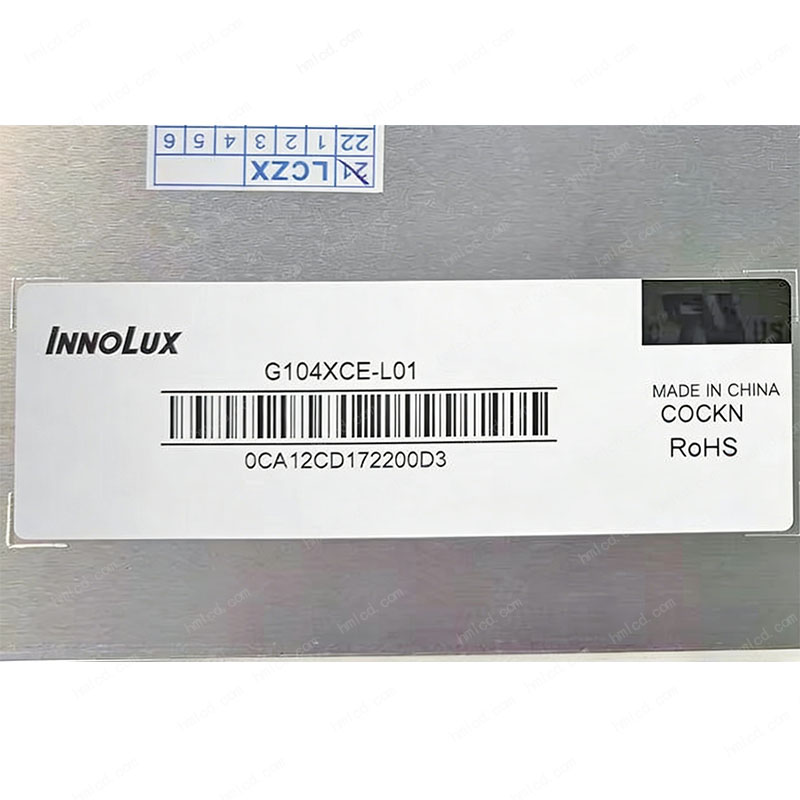

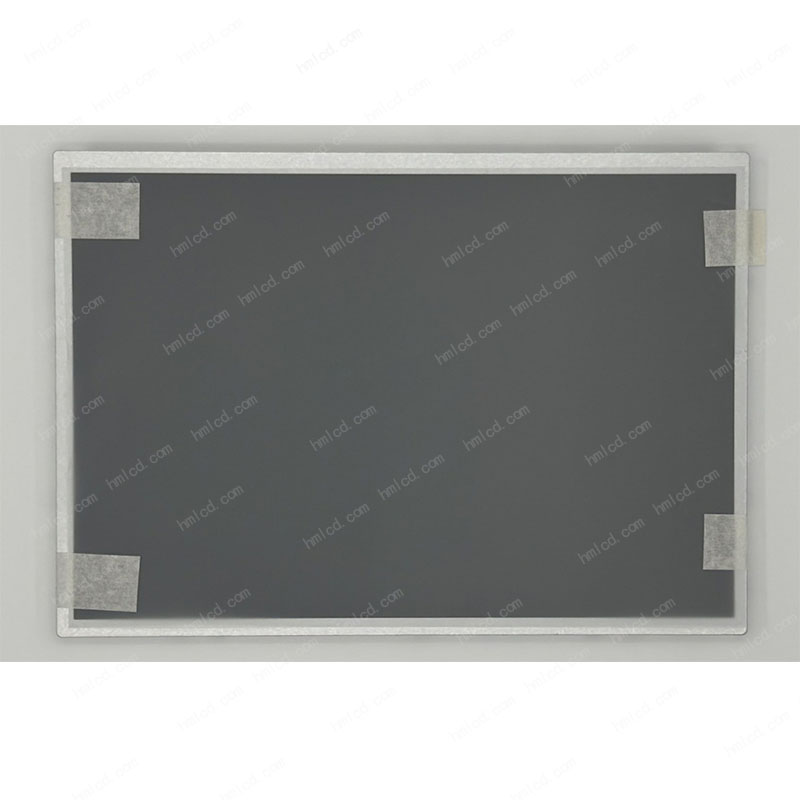

10.4"_Innolux_G104XCE-L01
Resolution
1024 X 768
Brightness
500 cd/m2 (Typ.)
Viewing Angle
88/88/88/88 (Typ.)(CR>=10)
Contrast Ratio
1000:1 (Typ.) (tm)
Display Colors
262k/16.2m , 72% ntsc
Pixel Format
RGB Vertical Stripe
Display Area
210.4 X 157.8(mm)
Display Mode
aas， Normally Black ， Transmissive
Lamp Type
WLED , 50k Hours , With LED Driver
Outline Size
225.5 X 176.3 X 9.2(mm)
Surface
Matte
Panel Weight
430g (Typ.)
Response Time
14/11 (Typ.)(tr/td)
Frequency
60Hz
Signal Interface
LVDS (1 ch, 6/8-bit) , 30 pins ,
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 85°c; Storage Temp.: -30 ~ 85°c;
Current State
In Production
