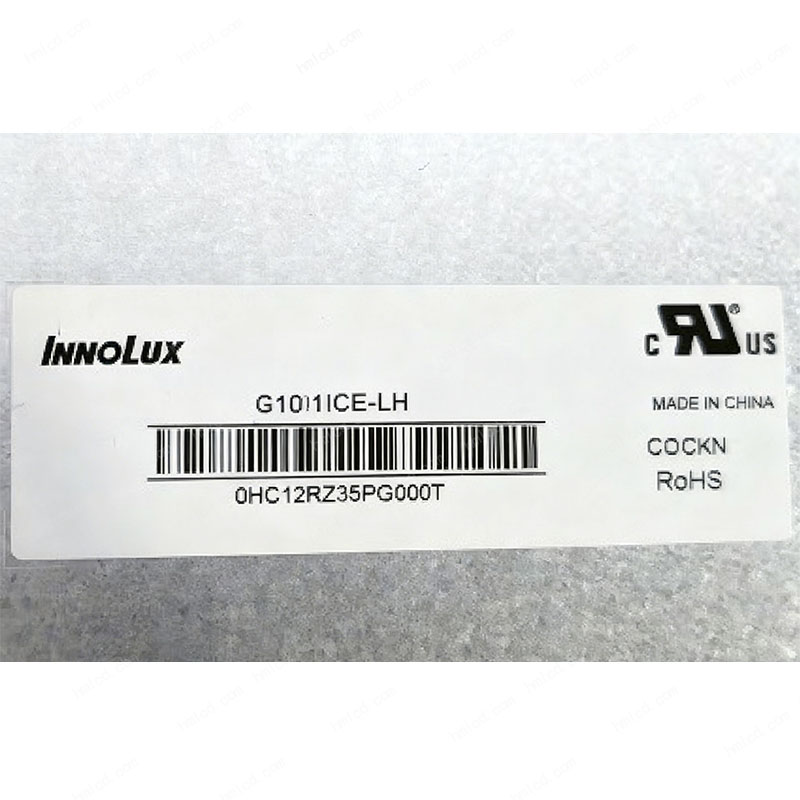

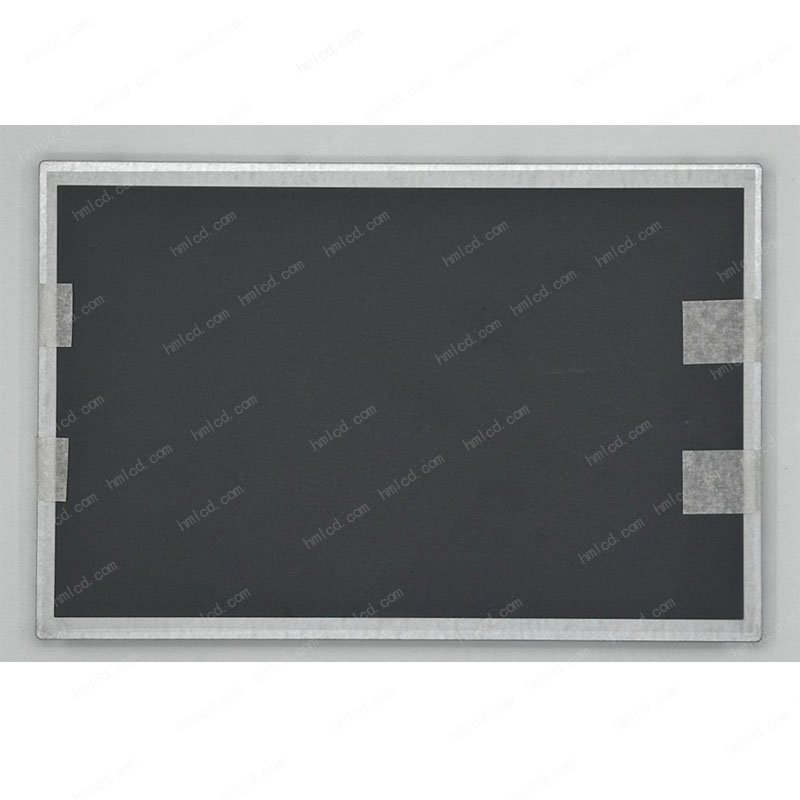

10.1"_Innolux_G101ICE-LH1
Resolution
1280 X 800
Brightness
500 (Typ.)
Viewing Angle
89/89/89/89 (Typ.)(CR>=10)
Contrast Ratio
800 : 1 (Typ.) ( Transmission )
Display Colors
262K/16.7M
Pixel Format
RGB Vertical Stripe
Display Area
216.96 X 135.6(mm)
Display Mode
aas， Normally Black ， Transmissive
Lamp Type
WLED 50k Hours
Outline Size
230.7 x 152.55 x 6.5 (mm)
Surface
Matte
Panel Weight
300 g
Response Time
13/12 (Typ.)(Tr/Td) ms
Frequency
60Hz
Signal Interface
LVDS 30 pins (1 ch 6/8-bit)
Input Voltage
5.0V (Typ.)
Environment
Operating Temp.: -30 ~ 80°c; Storage Temp.: -40 ~ 85°c;
