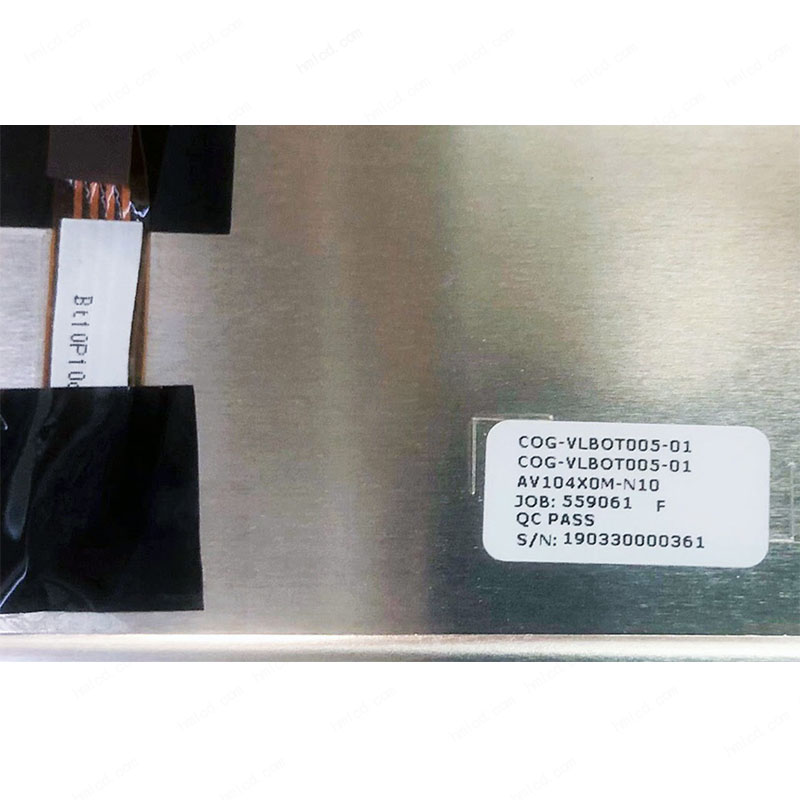

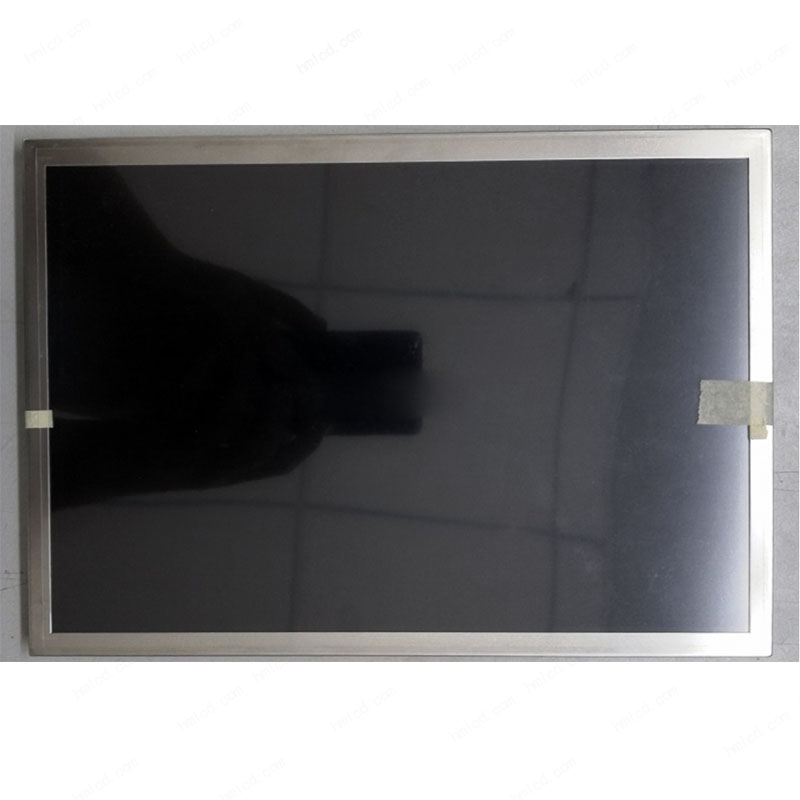

10.4"_BOE_AV104X0M-N10
Resolution
1024 X 768
Brightness
600 cd/m2 (Typ.)
Viewing Angle
85/85/85/85 (Typ.)(CR>=10)
Contrast Ratio
1100:1 (Typ.) (TM)
Display Colors
262k/16.7m 70% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
210.4 X 157.8(mm)
Display Mode
ADS， Normally Black ， Transmissive
Lamp Type
WLED 11s2p 50k Hours Without Driver
Outline Size
230 X 180.2(mm)
Surface
-
Panel Weight
tbd
Response Time
30 (Typ.)(Tr+Td)
Frequency
60Hz
Signal Interface
LVDS (1 ch 6/8-bit) 20 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 85°c; Storage Temp.: -40 ~ 95°c;
