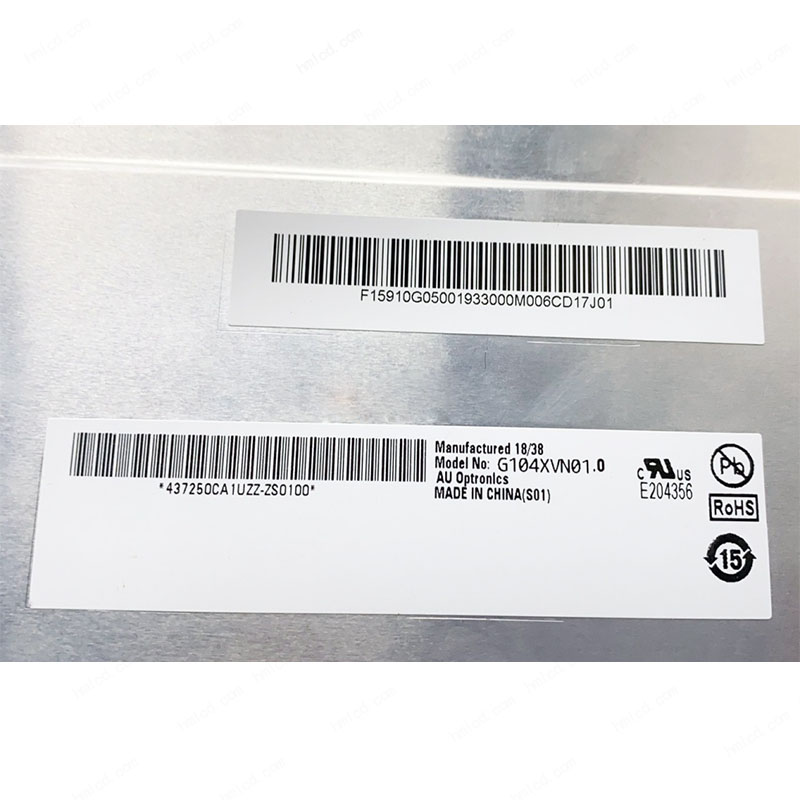

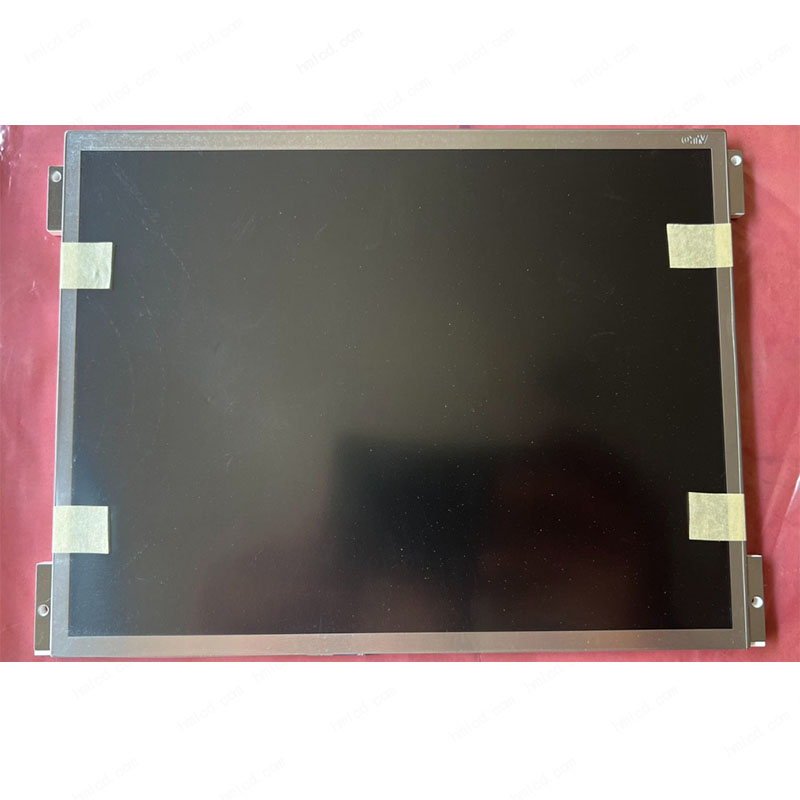

10.4"_AUO_G104XVN01.0
Resolution
1024 X 768
Brightness
470 cd/m2 (Typ.)
Viewing Angle
89/89/89/89 (Typ.)(CR>=10)
Contrast Ratio
3000:1 (Typ.) (TM)
Display Colors
262k/16.2m 60% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
210.4 X 157.8(mm)
Display Mode
psa， Normally Black ， Transmissive
Lamp Type
WLED 2 strings 80k Hours With LED Driver
Outline Size
238.6 X 175.8 X 7(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
295g (Typ.)
Response Time
20/10 (Typ.)(Tr/Td)
Frequency
60Hz
Signal Interface
LVDS (1 ch 6/8-bit) 30 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 80°c; Storage Temp.: -30 ~ 80°c;
Current State
In Production
