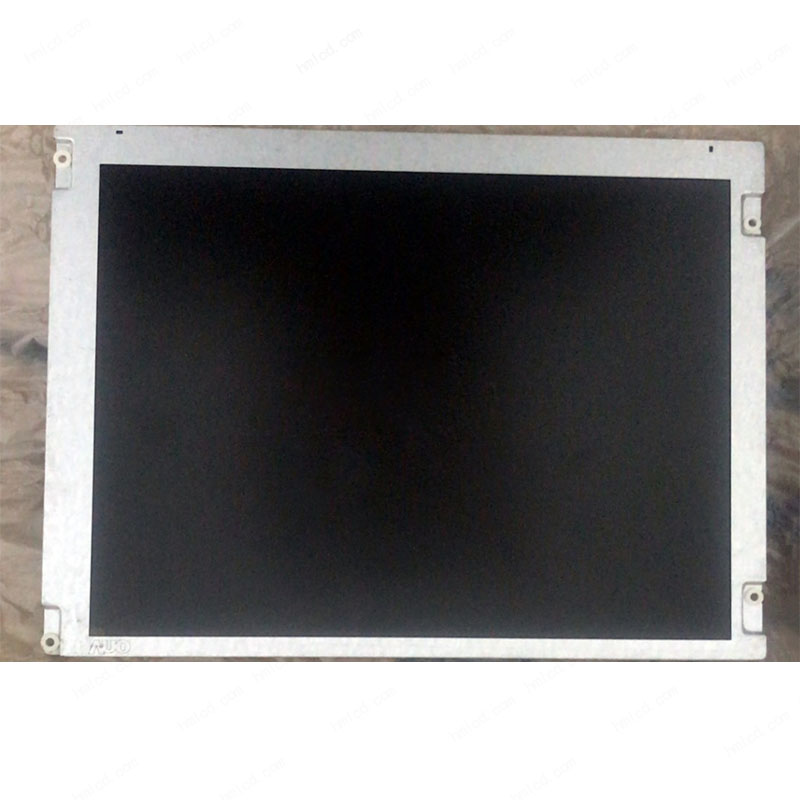

10.4"_AUO_G104STN01.0
Resolution
800 X 600
Brightness
400 cd/m2 (Typ.)
Viewing Angle
80/80/60/70 (Typ.)(CR>=10)
Contrast Ratio
700:1 (Typ.) ( Transmission )
Display Colors
262k/16.2m 50% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
211.2 X 158.4(mm)
Display Mode
TN， Normally White ， Transmissive
Lamp Type
WLED [7s2p] 70k Hours With LED Driver
Outline Size
243 X 184 X 7(mm)
Surface
Matte ，Hard coating (3H)
Panel Weight
365g (Typ.)
Response Time
10/5 (Typ.)(Tr/Td) ms
Frequency
60Hz
Signal Interface
LVDS 20 pins (1 ch 6/8-bit)
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 80°c; Storage Temp.: -30 ~ 80°c;
Current State
In Production
