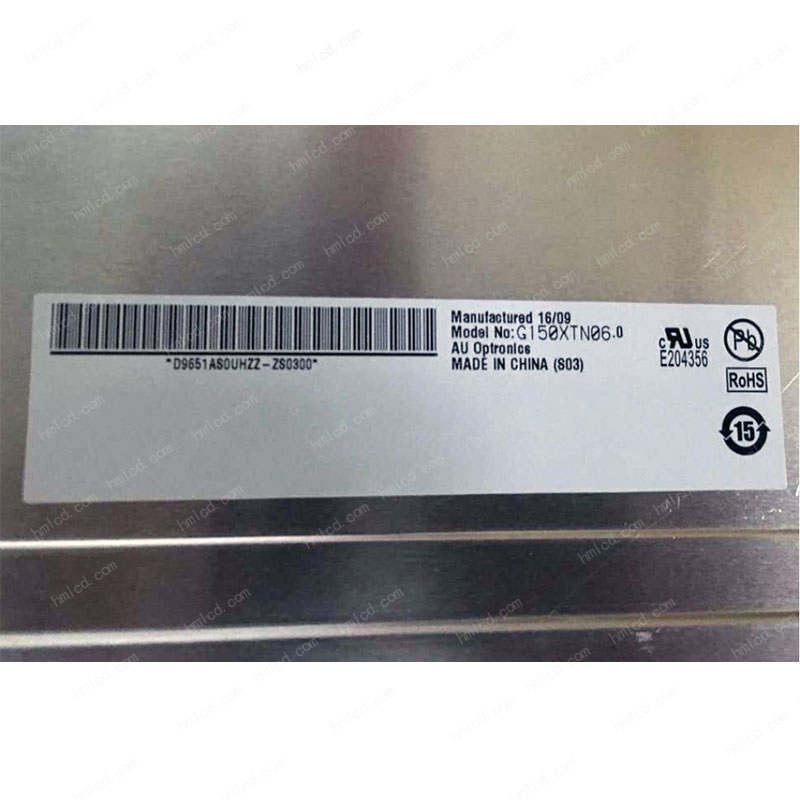

15.0"_ AUO_G150XTN06.2
Resolution
1024 X 768
Brightness
300 (Typ.)
Viewing Angle
80/80/60/80 (Typ.)(CR>=10)
Contrast Ratio
700 : 1 (Typ.) ( Transmission )
Display Colors
262k/16.2m 60% (CIE1931)
Pixel Format
RGB Vertical Stripe
Display Area
304.128 X 228.096(mm)
Display Mode
TN， Normally White ， Transmissive
Lamp Type
WLED 70k Hours With LED Driver
Outline Size
326.5 X 253.5 X 12(mm)
Surface
Matte
Panel Weight
1.25kgs (Typ.)
Response Time
5.7/2.3 (Typ.)(Tr/Td) ms
Frequency
60Hz
Signal Interface
LVDS (1 ch 6/8-bit) 20 pins
Input Voltage
3.3v (Typ.)
Environment
Operating Temp.: -30 ~ 85°c; Storage Temp.: -30 ~ 85°c;
Current State
In Production
